A Beginner’s Guide to Solar PV Panel Design: What You Need to Know

As energy costs rise and climate change becomes an urgent concern, homeowners and businesses alike are turning to solar energy as a clean and sustainable power source. If you’re considering switching to solar power, understanding solar PV panel design is a great place to start.

This beginner-friendly guide will walk you through everything you need to know about solar PV panel design and installation, from how it works to what to expect during setup. Whether you’re curious about powering your home or launching a green energy project, we’ll help you make smart, informed choices.

What Is a Solar PV System?

First things first — PV stands for photovoltaic, a fancy term for technology that converts sunlight into electricity. A solar PV panel absorbs sunlight using photovoltaic cells (usually made from silicon), which generate direct current (DC) electricity. This DC electricity is then converted to alternating current (AC) using an inverter, making it suitable for your home appliances.

A complete solar PV panel design and installation includes:

Solar panels (the collectors)
Inverter (DC to AC converter)
Mounting system (roof or ground)
Electrical wiring
Monitoring system (optional but helpful)
Battery storage (optional, but increasingly popular)

Why Solar PV Panels?

Here’s why going solar is a smart choice for beginners:

✅ Lower Energy Bills – Cut down or even eliminate monthly electricity costs.
✅ Eco-Friendly – Reduce your carbon footprint and reliance on fossil fuels.
✅ Low Maintenance – Solar panels have no moving parts and require minimal upkeep.
✅ Incentives and Tax Credits – Many governments offer rebates to offset installation costs.
✅ Energy Independence – Say goodbye to power outages and grid dependence (especially if you add batteries).

Core Components of a Solar PV Panel Design

A quality solar PV panel system is more than just panels. Here’s a breakdown of the main components and their role:

1. Solar Panels

These are the most visible part of your system. Panels vary in:

Size
Efficiency rating
Wattage capacity

For residential homes, you’ll usually see panels with capacities between 300W to 450W.

2. Inverter

This vital component converts DC electricity from the panels to AC electricity for household use. Types include:

String inverters – Ideal for simpler setups.
Microinverters – Attached to each panel for maximum efficiency.
Hybrid inverters – Can work with both the grid and battery storage.

3. Mounting System

Solar panels can be mounted in several ways:

Roof-mounted – Common in homes; uses existing roof structure.
Ground-mounted – Ideal for properties with open space.
Pole-mounted – Offers flexibility for angle and orientation.

4. Monitoring System

You can track your system’s performance with smart monitors or apps. These let you:

Monitor daily energy output
Detect underperforming panels
Keep tabs on long-term ROI

5. Battery Storage (Optional)

Adding a solar battery allows you to store excess energy for use at night or during power outages. While optional, it’s a smart addition for homeowners seeking complete energy independence.

How to Design a Solar PV Panel System: Step-by-Step

Designing your solar setup isn’t as overwhelming as it might seem. Here’s a simple step-by-step guide for beginners:

Step 1: Analyze Your Energy Usage

Check your utility bill to see how much electricity you use monthly. This helps determine how big your system needs to be. For example:

An average U.S. home uses around 10,000–11,000 kWh per year.

Step 2: Assess Your Roof or Property

Is your roof sunny most of the day? What’s the angle or tilt? A solar expert will:

Check for shading from trees or buildings.
Evaluate the orientation (south-facing is ideal in the U.S.).
Inspect roof condition (you may need repairs before installation).

Step 3: Calculate System Size

You can use simple math to estimate your needed system size:

Annual kWh usage ÷ average solar hours per day ÷ 365 = system kW size

A typical 6 kW system may require 15–18 panels, depending on wattage.

Step 4: Choose the Right Equipment

When picking panels, consider:

Panel efficiency
Manufacturer warranties (25+ years is ideal)
Aesthetics (black-on-black panels for better curb appeal)

Also, decide on the inverter and whether to add batteries.

Step 5: Get a Professional Design and Proposal

While DIY is possible, working with a licensed installer ensures:

Code compliance
Maximum efficiency
Safe wiring and grounding

They’ll also help you design the layout using tools like PV*SOL or Helioscope.

Solar PV Panel Installation Process

Here’s what a standard solar PV panel design and installation timeline looks like:

✅ Site Evaluation and Design (1–2 weeks)

An installer visits your home, collects data, and designs your system using software modeling tools.

✅ Permits and Paperwork (2–4 weeks)

Your installer handles:

Local government permits
Utility interconnection applications
Possible HOA approvals

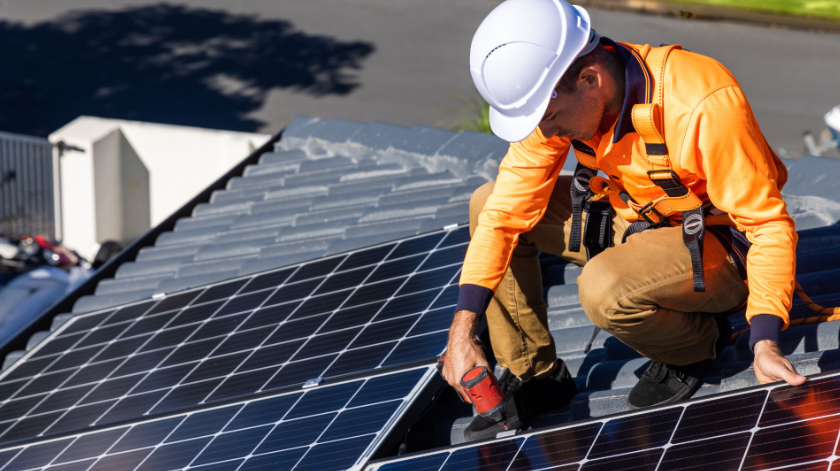

✅ Installation Day (1–3 days)

Panels, inverters, and wiring are installed. Most residential jobs take just 1–2 days.

✅ Inspection and Utility Approval (1–3 weeks)

After a final inspection, your utility gives the green light to connect to the grid. Once approved, you can flip the switch and go solar!

Cost of Solar PV Panel Design and Installation

Prices have dropped significantly over the last decade. Here’s a rough cost breakdown:

System Size	Average Cost (Before Incentives)
4 kW	$10,000 – $12,000
6 kW	$15,000 – $18,000
8 kW	$20,000 – $24,000

Federal tax credits (currently 30%) can significantly reduce your final cost. States and utilities may also offer rebates and solar renewable energy credits (SRECs).

Tips for First-Time Solar Buyers

Get Multiple Quotes – Compare prices, warranties, and equipment.
Check Credentials – Look for NABCEP-certified installers.
Understand Your Warranty – Look for at least 25 years for panels, 10+ for inverters.
Ask About Monitoring – Make sure you can track your system’s performance.
Plan for the Future – Leave room to expand your system if your energy needs grow.

Common Myths About Solar PV Panel Design and Installation

❌ “Solar doesn’t work on cloudy days.”

Truth: Solar panels still produce power on cloudy days — just less than on sunny ones.

❌ “Solar is too expensive.”

Truth: With incentives and financing options, solar is more affordable than ever.

❌ “I need to go off-grid to go solar.”

Truth: Most systems stay connected to the grid, allowing you to draw energy when needed and send excess back.

Is Solar Right for You?

If you:

Own your home
Have a roof with good sun exposure
Want to lower your utility bills
Care about the environment

…then solar is worth exploring.

Even if you’re not ready to install right away, understanding the basics of solar PV panel design and installation puts you in a strong position to make the switch when the time is right.

Final Thoughts

Solar power is no longer just for tech-savvy homeowners or off-grid adventurers. It’s a mainstream, affordable solution that offers real benefits. Understanding the basics of solar PV panel design — including the system components, sizing, installation, and costs — is the first step in making a smart, future-focused decision.

If you’re considering solar, partner with a trusted installer who can walk you through every phase, from system design to turning the switch on your first clean kilowatt.

Also visit…

FAQs

1. How long do solar panels last?

Most solar panels come with a 25 to 30-year warranty and can last even longer. Their efficiency may decrease slightly over time, but quality panels still produce around 80–90% efficiency after 25 years.

2. Do solar panels work during power outages?

Not unless you have a battery backup system. Standard grid-tied systems shut down during outages for safety reasons. If you want power during blackouts, ask your installer about adding battery storage.

3. How much maintenance do solar panels require?

Very little. Occasionally rinsing panels to remove dust and debris is usually enough. An annual inspection ensures everything is running smoothly.
